  • 125A 1500V Single core waterproof straight connector

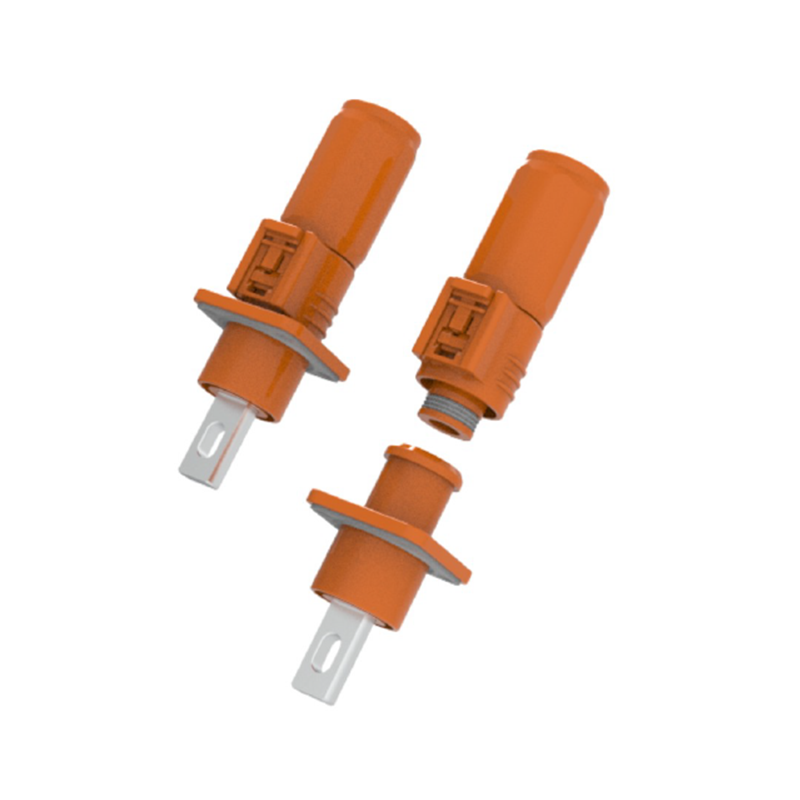

125A 1500V Single core waterproof straight connector

125A 1500V Single core waterproof straight connector

  • Product description:
    Item NO.: LT-CC305
    Order(MOQ): 100
    Payment: T/T,L/C,Western Union,Paypal
    Product Origin: China
    Shipping Port: Shenzhen
    Lead Time: 7 Days
  • INQUIRY

Specification Parameters

  • Insertion and removal lifespan: 500 times;
  • Rated current: 125A (MAX);
  • Rated Voltage: 1000V AC/1500V DC (MAX);
  • Contact impedance Resistance: 0.5 milliohm (MAX);
  • Insulation Resistance: 2000 Megohm (MIN);
  • Separating Force after locking: 110N (MIN);
  • Operating Temperature: -40 ° C to+125 ° C;
  • Cable Range: 16mm ² to 25mm ²;
  • Fire Rating: UL94V-0;
  • Waterproof level IP Class: IP67 (Mated);
  • High voltage safety interlock;
