  • DC Charging Inlet cable assembly

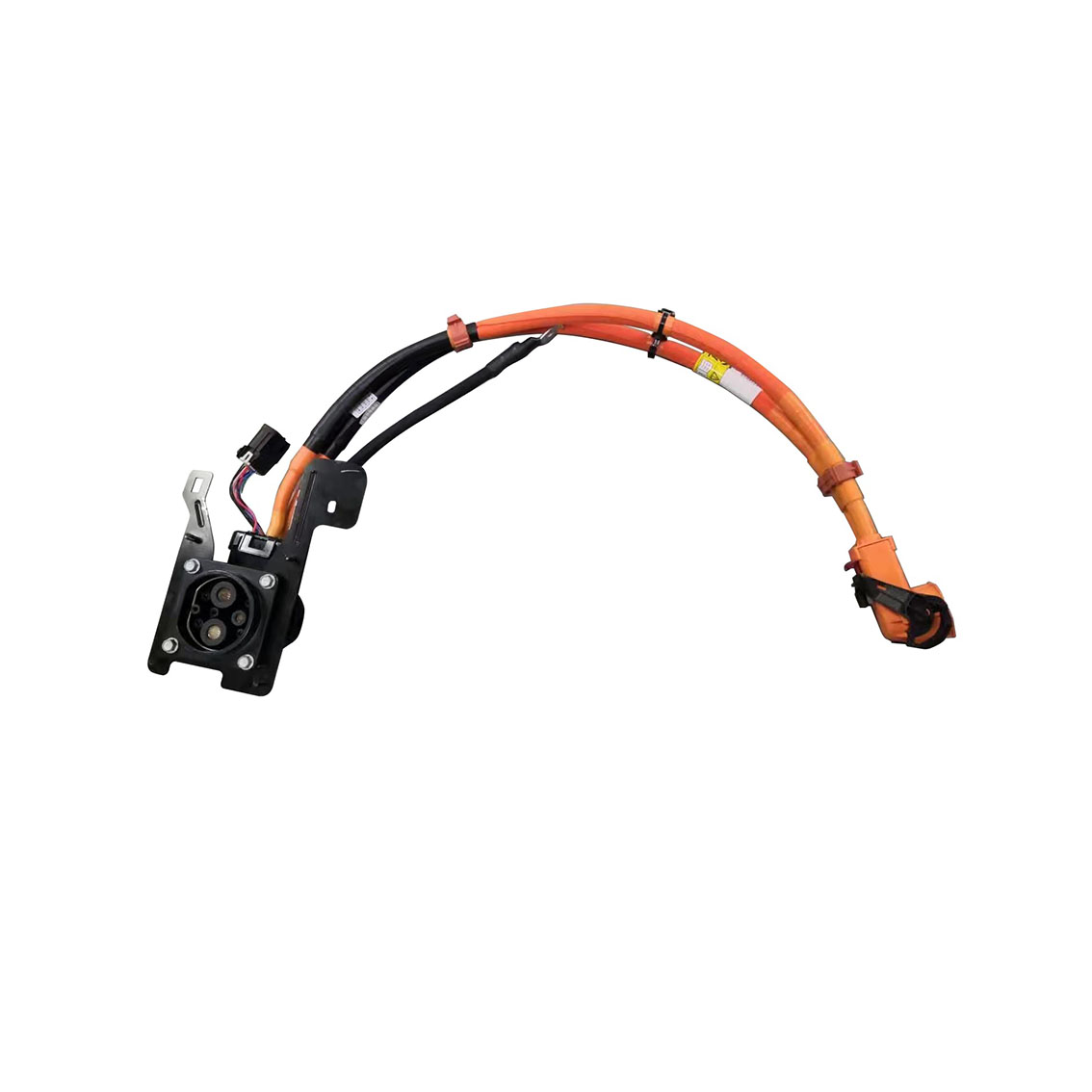

DC Charging Inlet cable assembly

DC Charging Inlet cable assembly

  • Product description:
    Item NO.: LT-WH302
    Order(MOQ): 100
    Payment: T/T,L/C,Western Union,Paypal
    Product Origin: China
    Connector: Amphenol/TE/Jonhon/Recodeal/Molex/JST
    Shipping Port: Shenzhen
    Lead Time: 15 Days
  • INQUIRY
Product introduction

mechanical properties:
•Terminal: 8/12 mm pin, silver plated surface
•Wire range: 25mm², 35mm², 50mm², 70mm²
•Insertion life: ≥10000 times
•Plugging force: 100N ≤ F ≤ 140 N

Electrical characteristics:
• Rated voltage: 750V/1000V
• Rated current: 125A/150A/200A/250A
• Insulation resistance: ≥ 200M
• Insulation withstand voltage: 2500V AC

Environmental characteristics:
• Working temperature: -40℃ ~125℃.
• Protection Level: IP67
• Anti-shock Grade: IP2XB
• Corrosion resistance: 48H salt spray test

Characteristics and advantages:
• Straight 180 degrees, curved 90 degrees and various outgoing schemes are optional.
• Application of 25mm², 35mm², 50mm² and 70mm² wire diameters
• Touch-proof, IP2XB

• Waterproof Seal, IP67


Application area
Power Charging system
