  • Generator high voltage harness assembly
Generator high voltage harness assembly

Generator high voltage harness assembly

  • Product description:
    Item NO.: LT-WH341
    Order(MOQ): 100
    Payment: T/T,L/C,Western Union,Paypal
    Product Origin: China
    Connector: Amphenol/TE/Jonhon/Recodeal/Molex/JST
    Shipping Port: Shenzhen
    Lead Time: 15 Days
  • INQUIRY

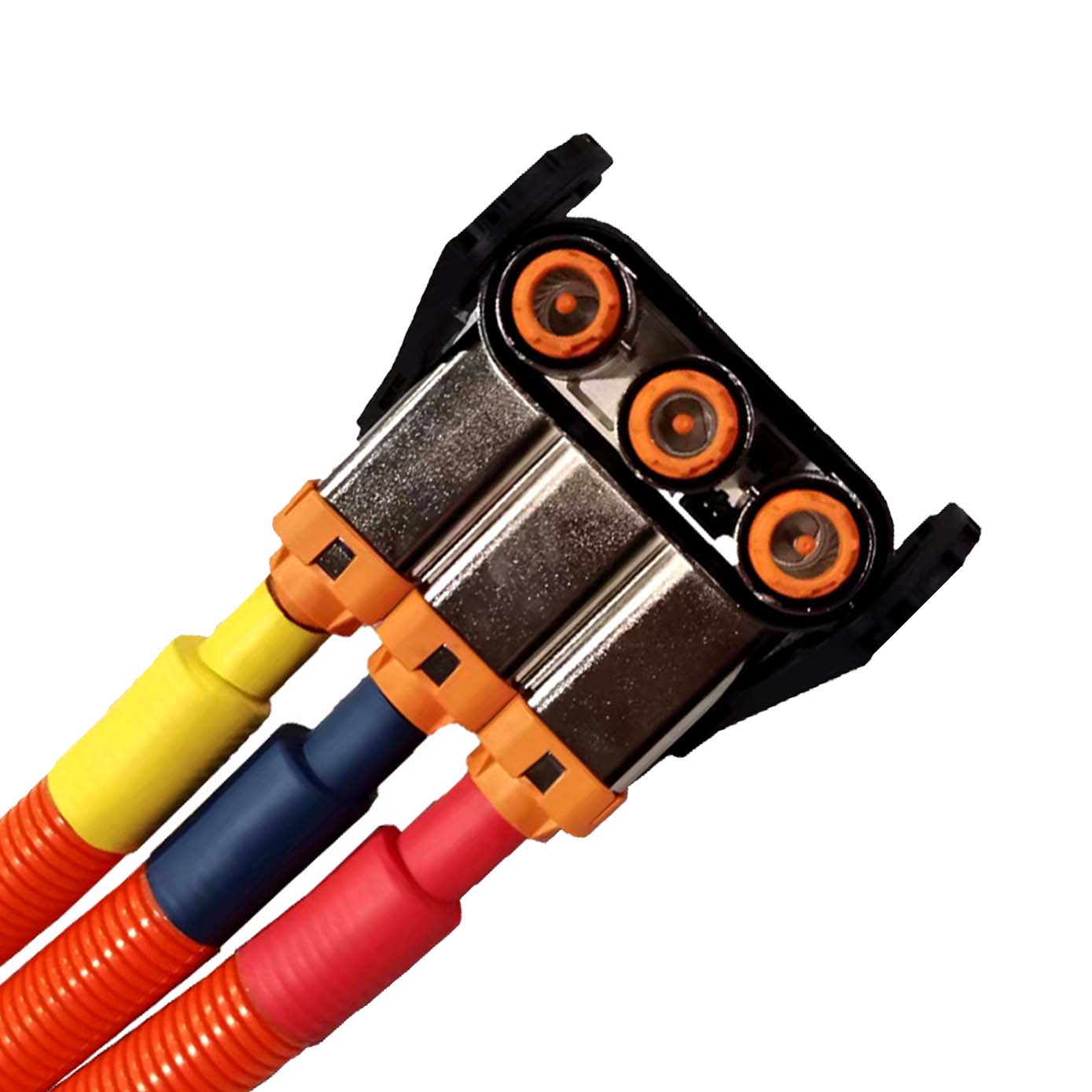

Generator high voltage harness assembly


New Energy Electric Vehicle B60VS Generator High Voltage Wire Harness Assembly (Connector Specification - Amphenol HVMC3P12FV150)


Sample Specifications
EV 6mm² , EV 10mm², EV 16mm² , EV 25mm² , EV 35mm² , EV 50mm² , EV 70mm² , EV 90mm² , EV 120mm²
Rated current
50A , 70A , 100A , 120A , 150A , 200A , 250A , 300A , 350A
Rated voltage 1500V

Rated temperature -40 ℃~+125 ℃
Protection level IP67
Anti electric shock level IP2XB
Corrosion resistance 48H salt spray test
Flame retardant grade UL94V-0/VW-1
Environmental attributes RoHS/REACH
Functional characteristics include high current, high temperature resistance, low internal resistance, and soft wire body
Remarks: The specifications, length, etc. of the wire can be made according to the customer's drawings and samples
