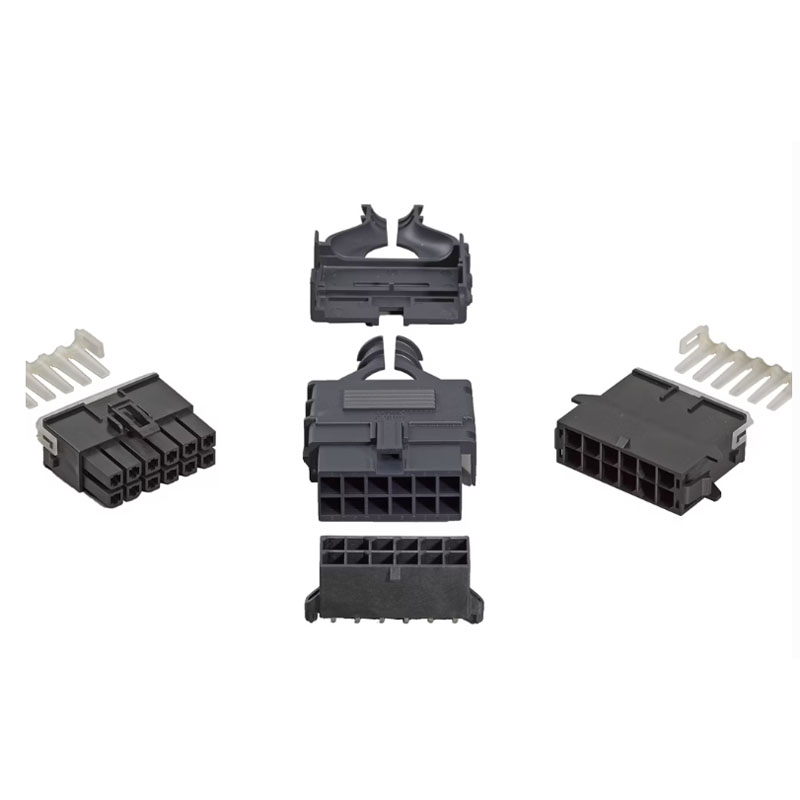

Mega-Fit Power Connector Series

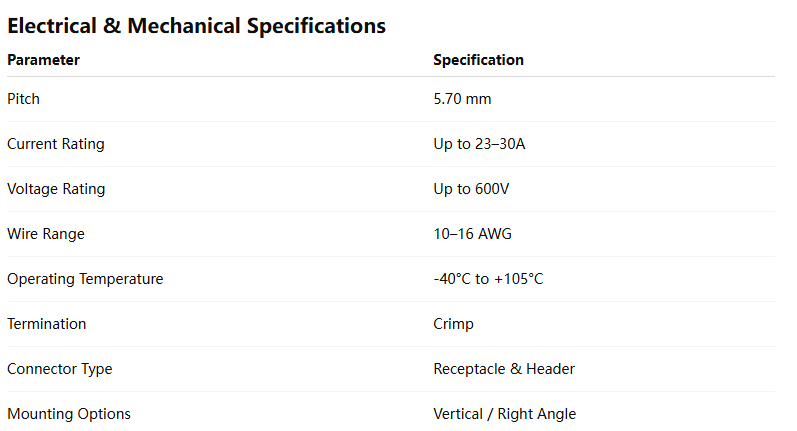

Key Features

• 5.70 mm pitch for high-current power delivery

• Up to 23–30A per circuit (depending on wire size and configuration)

• Robust terminal design for low contact resistance

• Positive locking system for secure and vibration-resistant mating

• Wire-to-board and wire-to-wire configurations

• Multiple circuit counts available

• Fully compatible with Molex Mega-Fit series

Why Choose Mega-Fit?

As power requirements increase, standard connectors such as Mini-Fit Jr. may reach their limits. Mega-Fit is designed to handle higher current loads with greater thermal stability.

Key advantages include:

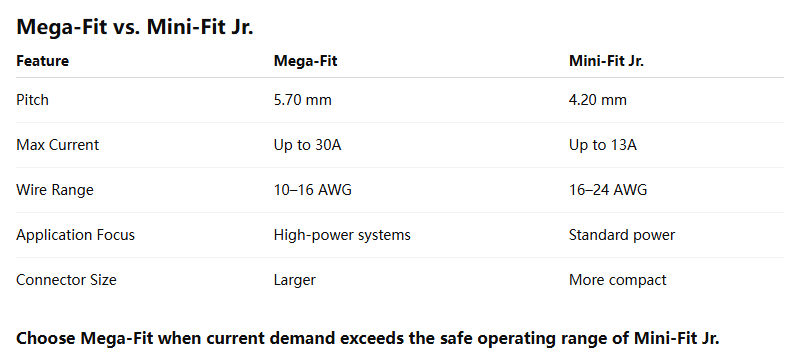

• Higher current capacity than Mini-Fit Jr.

• Improved power density compared to larger industrial connectors

• Strong mechanical structure for harsh environments

• Reliable locking for industrial vibration conditions

Mega-Fit bridges the gap between compact power connectors and heavy-duty industrial solutions.

Typical Applications

• Industrial power supplies

• Motor drives and controllers

• Automation and robotics systems

• Power distribution units (PDU)

• Battery systems

• Heavy-duty electrical equipment

Molex-Compatible & Custom Solutions

Our Mega-Fit connectors are fully compatible with Molex Mega-Fit series, allowing easy replacement without PCB or harness redesign.

We also offer:

• Custom cable assemblies

• High-current wire harness solutions

• OEM & ODM services

• Flexible MOQ for prototypes and production

Request Samples or Technical Support

Need a high-current connector you can rely on?
Our Mega-Fit solutions are ready to support your power-hungry applications.
