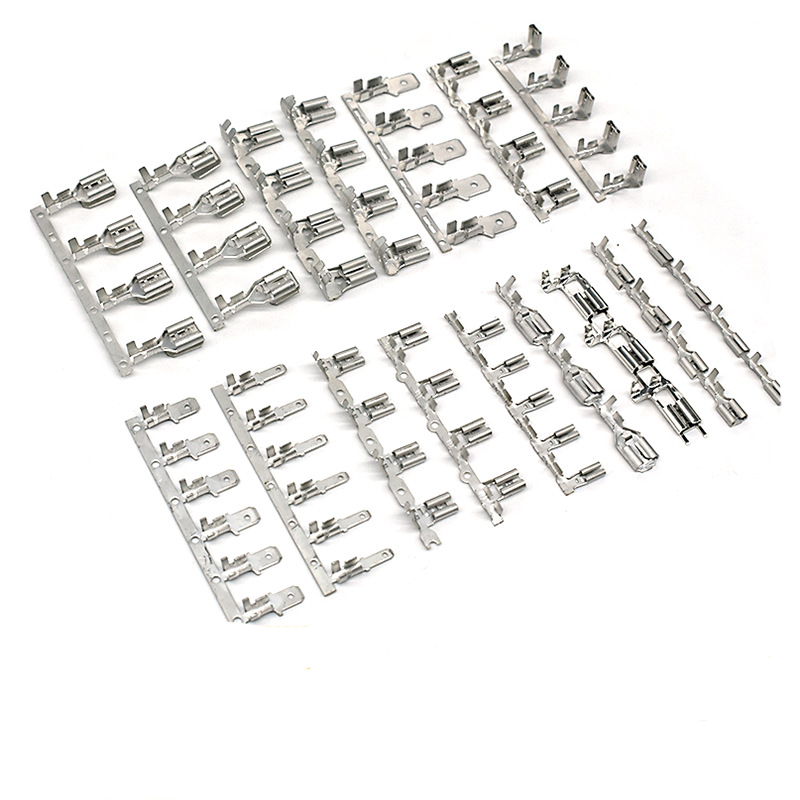

Faston Quick Disconnect Terminals (110 / 187 / 205 / 250 Series)

Key Features

• Covers four standard Faston sizes: 110 / 187 / 205 / 250

• Available in male and female versions

• Supports multiple wire gauges (22–10 AWG typical range)

• Tin-plated copper or brass for excellent conductivity

• High retention force and stable contact performance

• Compatible with automotive, industrial, and energy systems

• Designed for crimping, easy integration into wiring harnesses

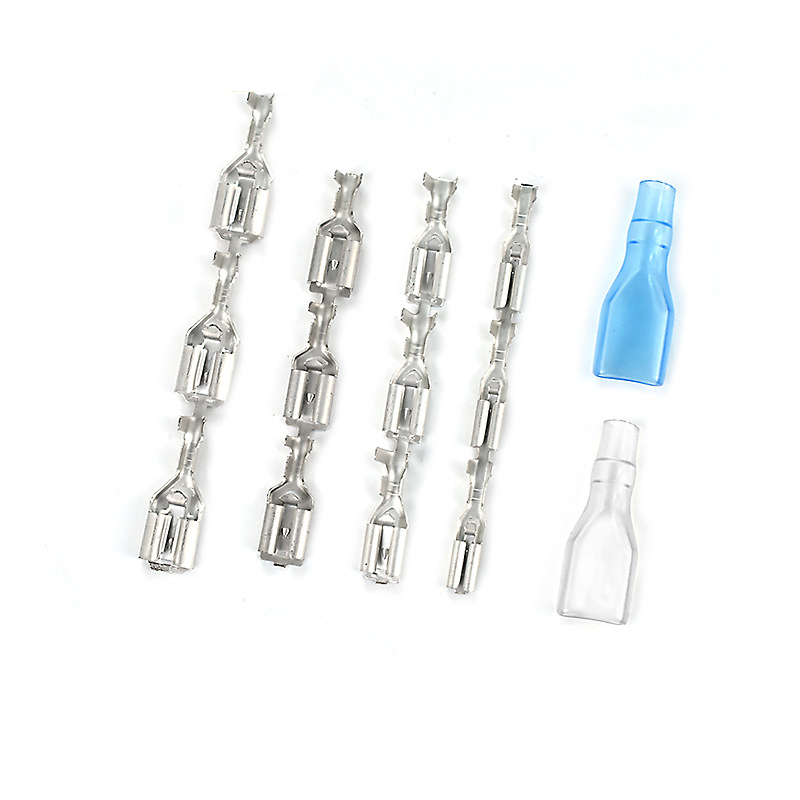

• Optional insulation sleeves available

Applications

• Automotive electronics

• Electric vehicles (EV)

• Energy storage systems (ESS)

• Industrial control panels

• HVAC equipment

• Power distribution units (PDU)

• Charging stations

• Consumer appliances

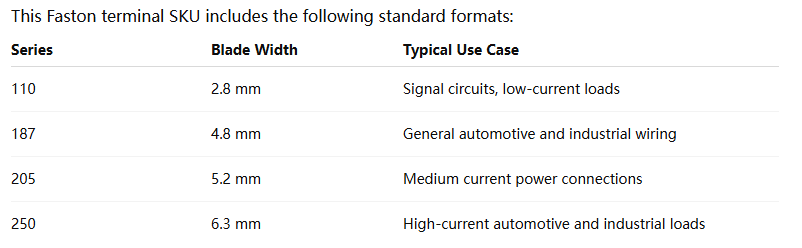

Series Overview

Technical Specifications

• Terminal type: Quick disconnect (spade)

• Series: 110 / 187 / 205 / 250

• Gender: Male / Female

• Material: Copper / Brass

• Plating: Tin plated

• Wire range: 22–10 AWG (depending on series)

• Insulation: Uninsulated or PVC / Nylon insulated

• Rated current: Up to 30A (depending on size and wire gauge)

• Rated voltage: 300V – 600V

• Operating temperature: -40°C to +105°C

• Compliance: RoHS, REACH

Selection Guide

Choose the correct Faston terminal based on:

1. Blade width (110 / 187 / 205 / 250)

2. Wire gauge (AWG size)

3. Terminal gender (male or female)

4. Insulation requirement (insulated or uninsulated)

5. Current rating required by your application

If you are unsure which size to choose, our team can recommend a standard configuration based on your connector system and current load.

Cross-System Compatibility

Our Faston terminals are commonly used alongside:

• Automotive blade connectors

• Fuse holders and relay sockets

• Switches and control modules

• TE Connectivity Faston-compatible systems

• Standard automotive spade housings

This makes them an ideal match for:

• DT / AT harness breakout points

• Control panel terminal transitions

• Power distribution harnesses

• Serviceable wiring modules

Faston SKU

We intentionally consolidate all Faston terminal variants into a single standardized SKU page to simplify product selection.

Instead of overwhelming customers with dozens of minor variations, we provide:

• The four most widely used Faston sizes

• Stable long-term supply

• Consistent quality across batches

• Application-oriented support

This approach helps OEMs and system integrators reduce sourcing complexity and avoid mismatched terminal issues.

Packaging & Customization

• Standard packaging: bulk bags or reels

• OEM labeling available

• Custom wire gauge matching

• Custom insulation colors (upon request)

• Crimp tool recommendations available

Call to Action

Need a Faston terminal solution for your project?
Tell us your wire gauge, current requirement, and application scenario.
We will recommend a standard Faston configuration that fits your system.
