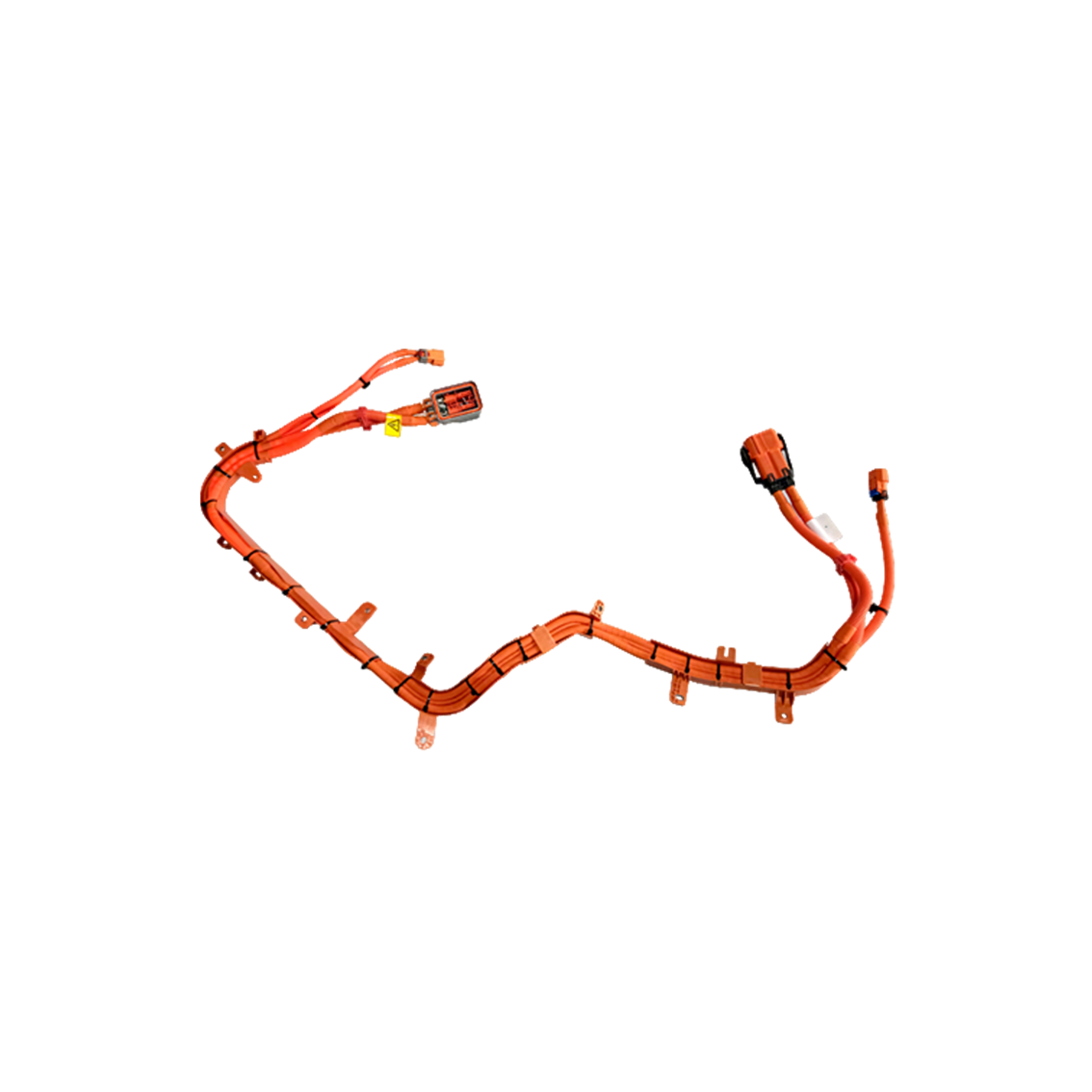

DC distribution Cable Assembly

Product description：

Item NO.: LT-WH308
Order(MOQ): 100
Payment: T/T,L/C,Western Union,Paypal
Product Origin: China
Connector: Amphenol/TE/Jonhon/Recodeal/Molex/JST
Shipping Port: Shenzhen
Lead Time: 15 Days

INQUIRY

Product introduction

Mechanical properties：
• Select Tyco, Delphi ,Ebusbar connector, safe and reliable
• The wire slot uses PA46 material, which can withstand temperatures above 200 °C

Electrical characteristics：
• Rated voltage: 250V~450V
• Rated current: 35mm2 145A, 4mm2 20A
• Insulation resistance: ≥100MΩ
• Insulation withstand voltage: 2200V AC

Environmental characteristics:
• Operating temperature: -40 ° C ~ 125 ° C
• Protection level: IP68
• Anti-shock level: IP2XB
• Corrosion resistance: 48H salt spray test

Features and benefits：
• Current is available at 25A and 145A
• Protection level: IP68

Application area
• Oil-electric hybrid models
