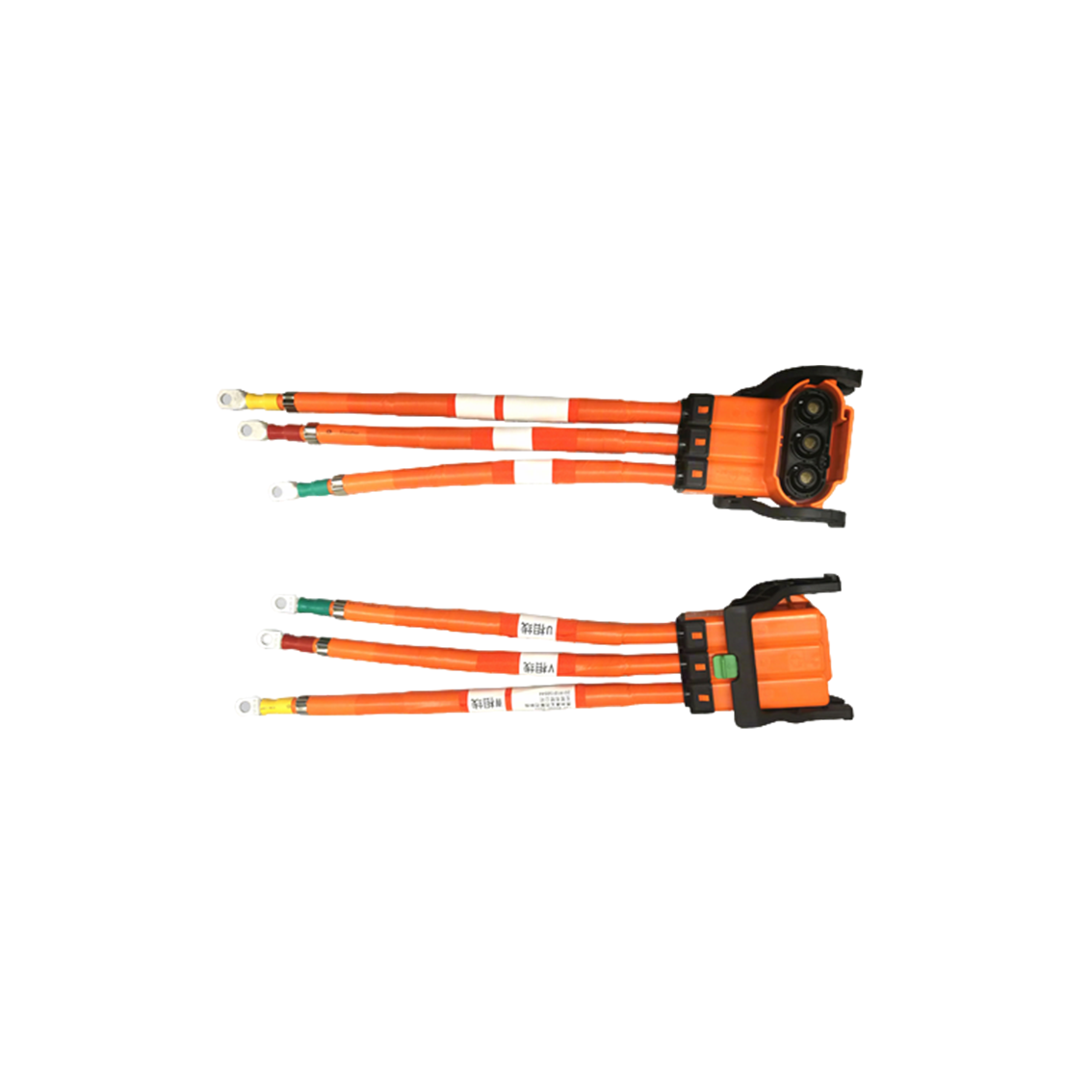

380V Motor Wireharness

Product description：

Item NO.: LT-WH307
Order(MOQ): 100
Payment: T/T,L/C,Western Union,Paypal
Product Origin: China
Connector: Amphenol/TE/Jonhon/Recodeal/Molex/JST
Shipping Port: Shenzhen
Lead Time: 15 Days

INQUIRY

Product introduction

Mechanical properties：
• Terminal: 8mm pin, silver plated surface
• Wire diameter range: 25mm2, 35mm2, 50mm2
• Terminal pull-out force ≥ 2300N

Electrical characteristics：
• Rated voltage: 800V DC
• Rated current: 125A~200A
• Insulation resistance: ≥500MΩ
• Insulation withstand voltage: 2500V AC

Environmental characteristics:
• Operating temperature: -40 ° C ~ 125 ° C
• Protection level: IP67
• Anti-shock level: IP2XB
• Corrosion resistance: 48H salt spray test

Features and benefits：
• Straight 180°, elbow 90°
• 25mm2, 35mm2, 50 mm2 three wire diameter applications
• Anti-touch, IP2XB
• Waterproof seal, IP67
• Flame retardant rating: UL94 V-0

Application area
• Motor power supply
