Home > EV Wiring Harness

  • Motor controller wireharness

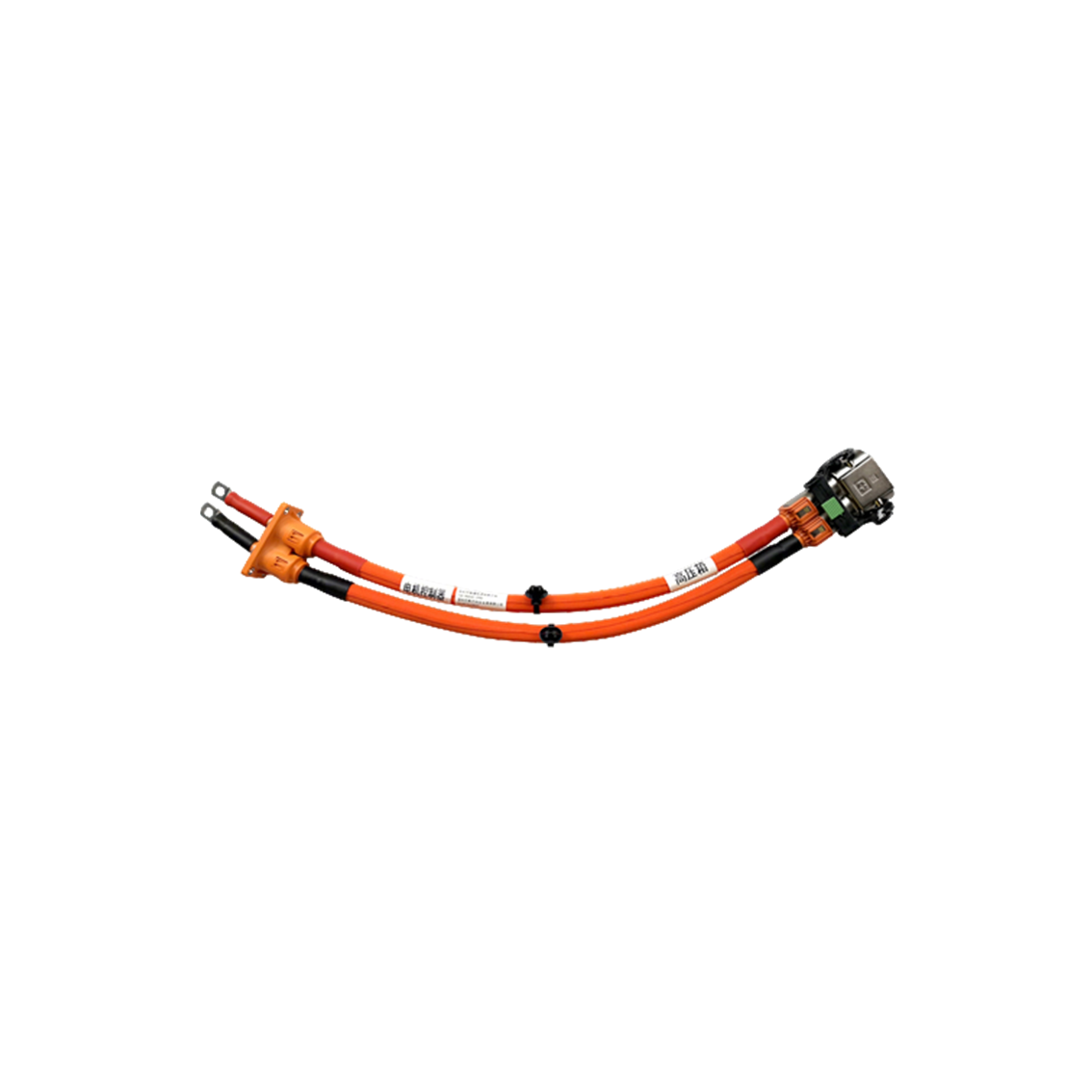

Motor controller wireharness

Motor controller wireharness

  • Product description:
    Item NO.: LT-WH306
    Order(MOQ): 100
    Payment: T/T,L/C,Western Union,Paypal
    Product Origin: China
    Connector: Amphenol/TE/Jonhon/Recodeal/Molex/JST
    Shipping Port: Shenzhen
    Lead Time: 15 Days
  • INQUIRY
Product introduction

Mechanical properties:
• Terminal: 6/12mm pin, silver plated
• Wire diameter range: 25mm2, 35mm2
• Plug and play life: ≥ 10,000 times
• Insertion and extraction force: 100N≤F≤140N

Electrical characteristics:
• Rated voltage: 800V DC
• Rated current: 80A/125A
• Insulation resistance: ≥200MΩ
• Insulation withstand voltage: 2500V AC

Environmental characteristics:
• Operating temperature: -40 ° C ~ 125 ° C
• Protection level: IP67
• Anti-shock level: IP2XB
• Corrosion resistance: 48H salt spray test

Features and benefits:
• Straight 180 degrees
• 25mm2, 35mm2 two wire diameter applications
• Anti-touch, IP2XB
• Waterproof seal, IP67

Application area
• Motor power supply
