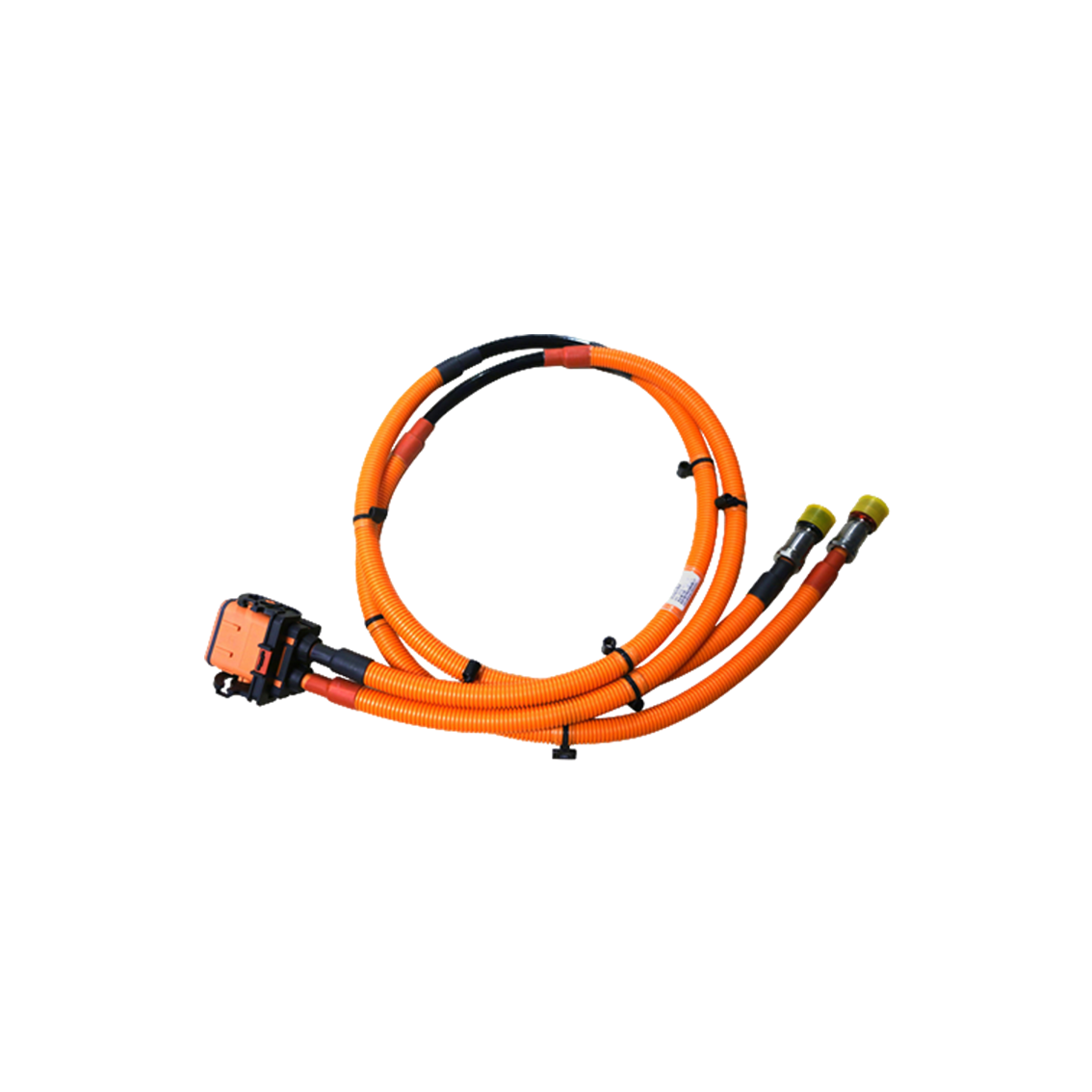

Power battery wireharness

Product description：

Item NO.: LT-WH304
Order(MOQ): 100
Payment: T/T,L/C,Western Union,Paypal
Product Origin: China
Connector: Amphenol/TE/Jonhon/Recodeal/Molex/JST
Shipping Port: Shenzhen
Lead Time: 15 Days

INQUIRY

Product introduction

Mechanical properties：
• Terminal: 8.0/10.3mm pin, silver plated
• Wire diameter range: 35mm2, 50mm2, 70mm2
• Plug and play life: ≥100 times
• Operational power: ≤100N

Electrical characteristics：
• Rated voltage: 800/1000V DC/AC
• Rated current: 125A/200A/250A
• Insulation resistance: ≥100MΩ
• Insulation withstand voltage: 2500V AC

Environmental characteristics:
• Operating temperature: -40 ° C ~ 125 ° C
• Protection level: IP67/IP68
• Anti-shock level: IP2XB
• Corrosion resistance: 48H/96H/480H salt spray test

Features and benefits：
• Straight 180 degree / curved 90 degree optional
• 35mm2, 50mm2, 70mm2 various wire diameters are available
• Anti-touch, IP2XB
• Waterproof seal, IP67

Application area
• High voltage interconnection between the PDU and the battery distribution box
